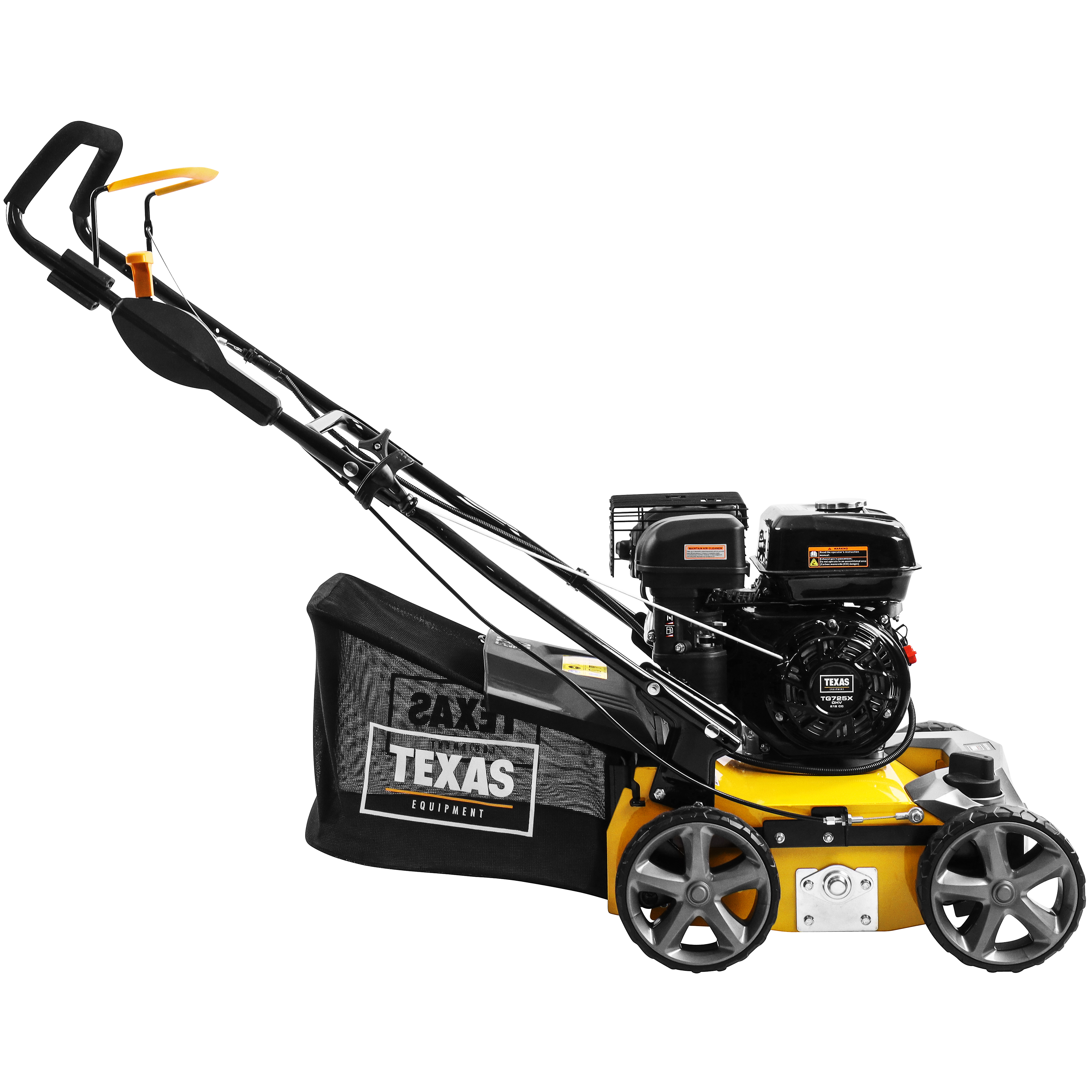

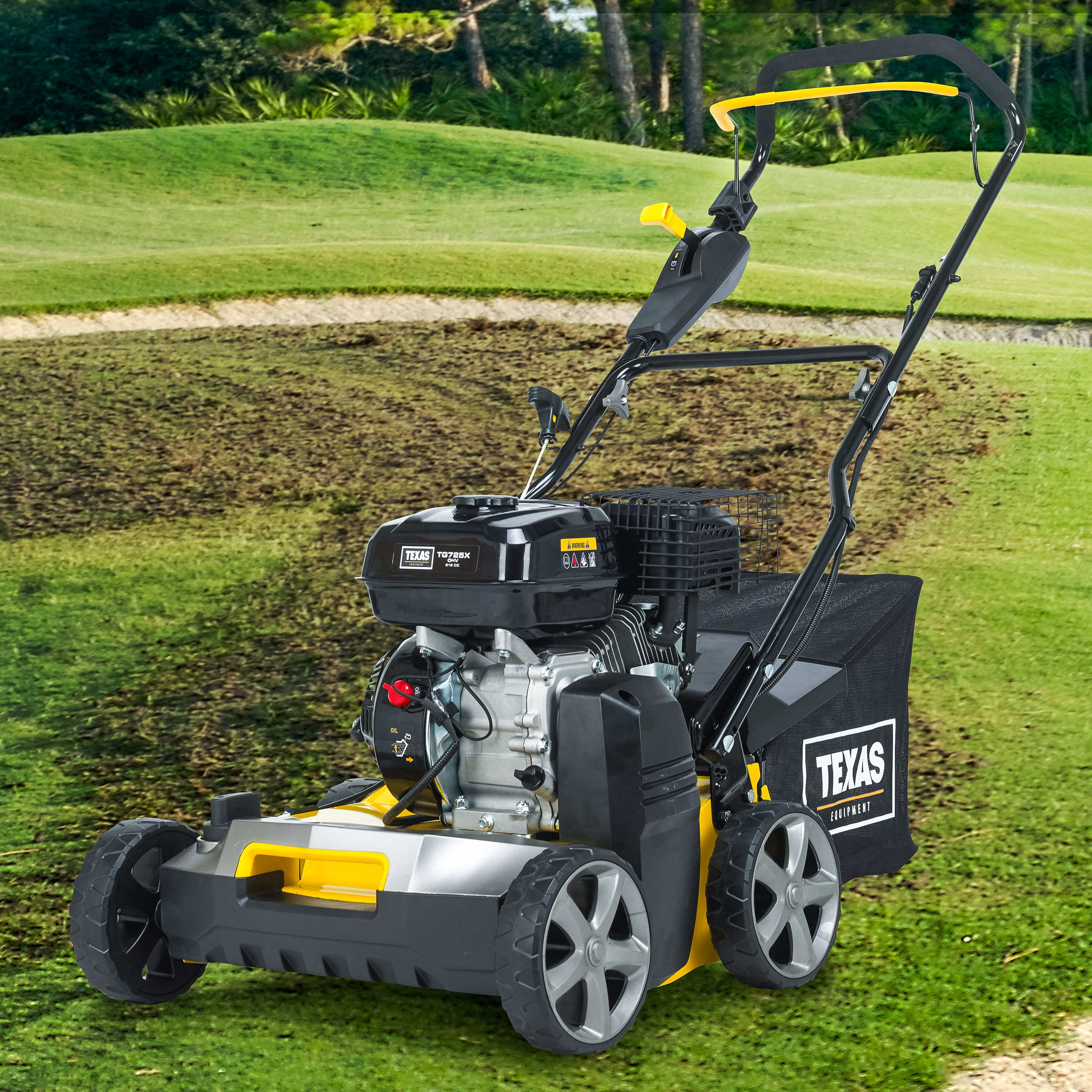

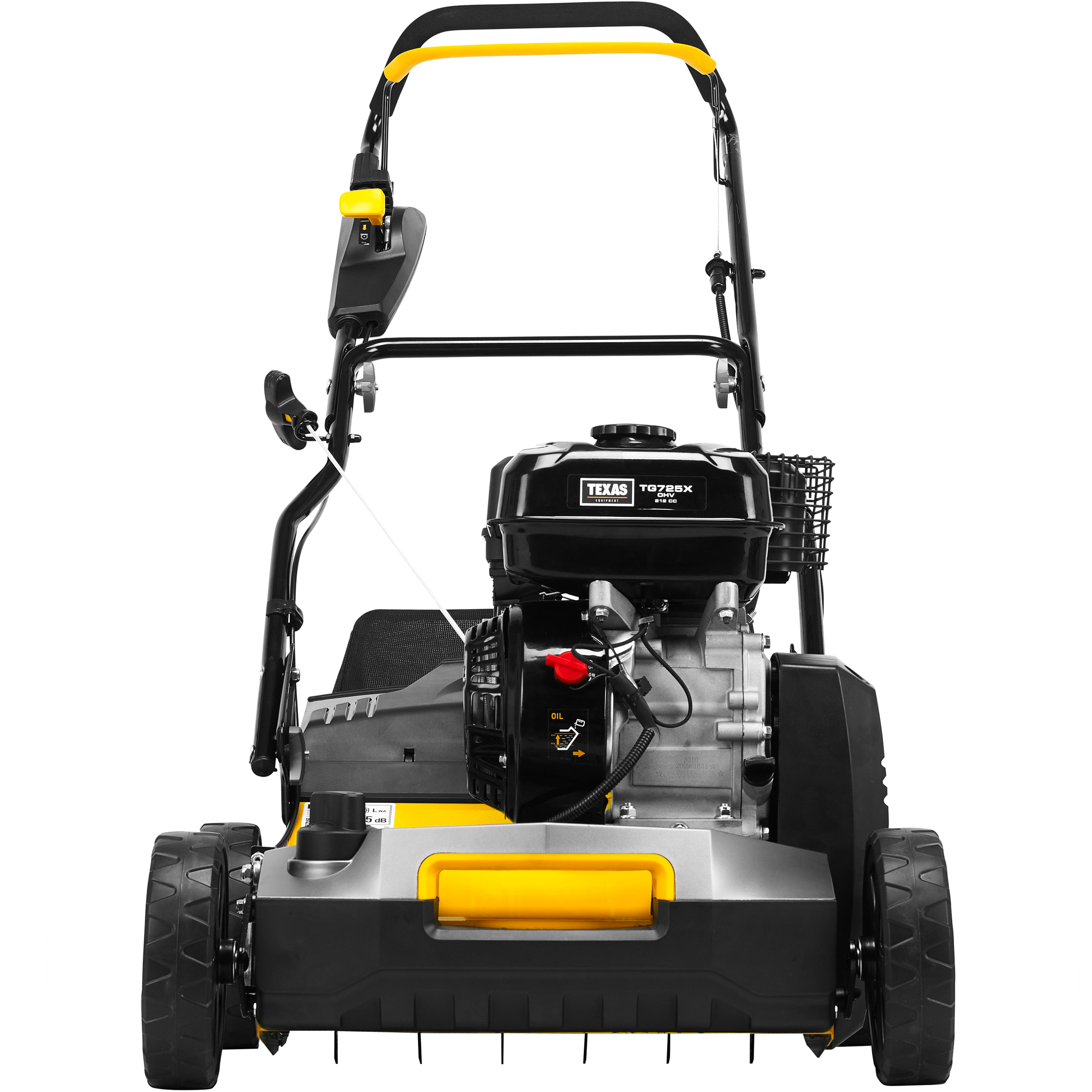

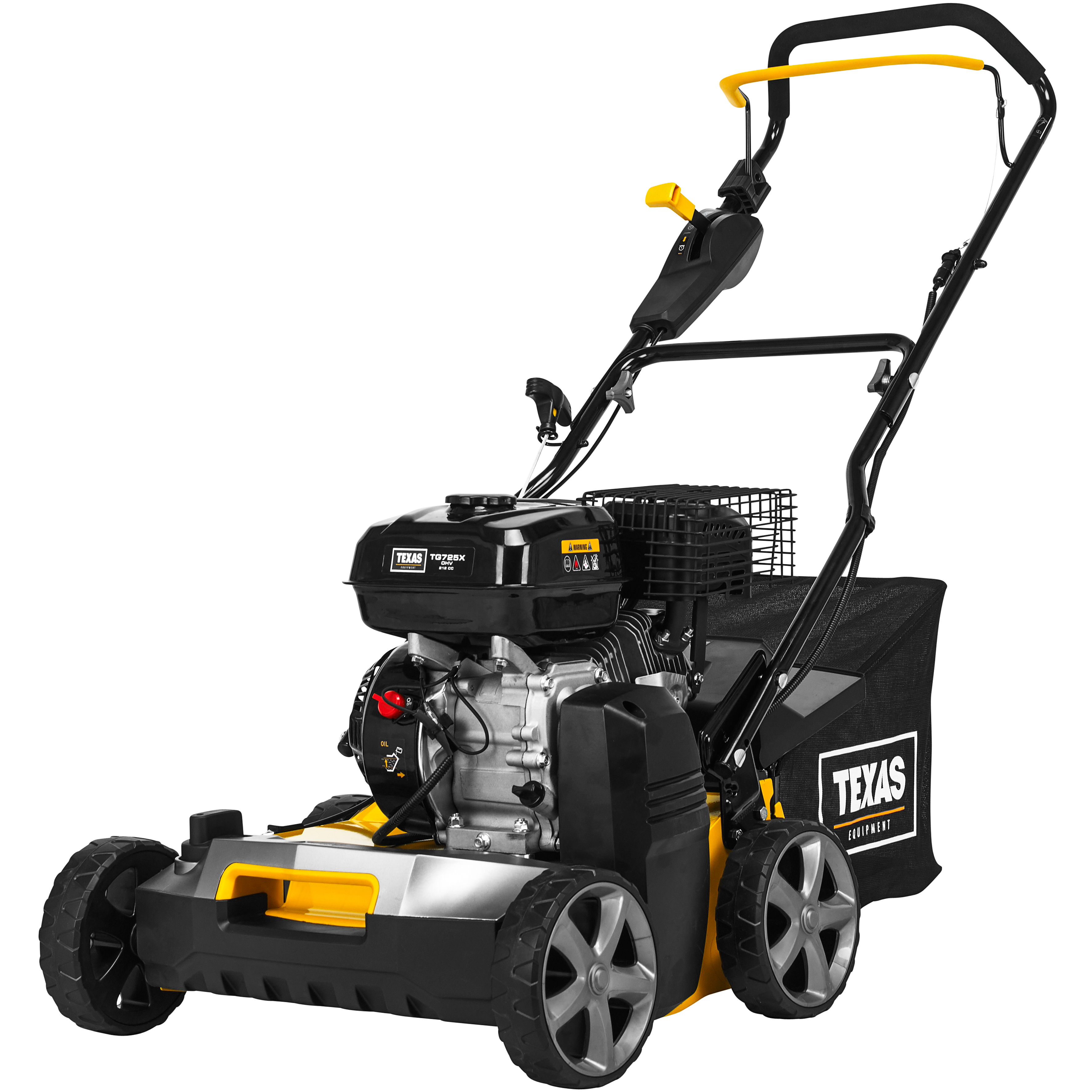

Pro Cut 400TG
Description

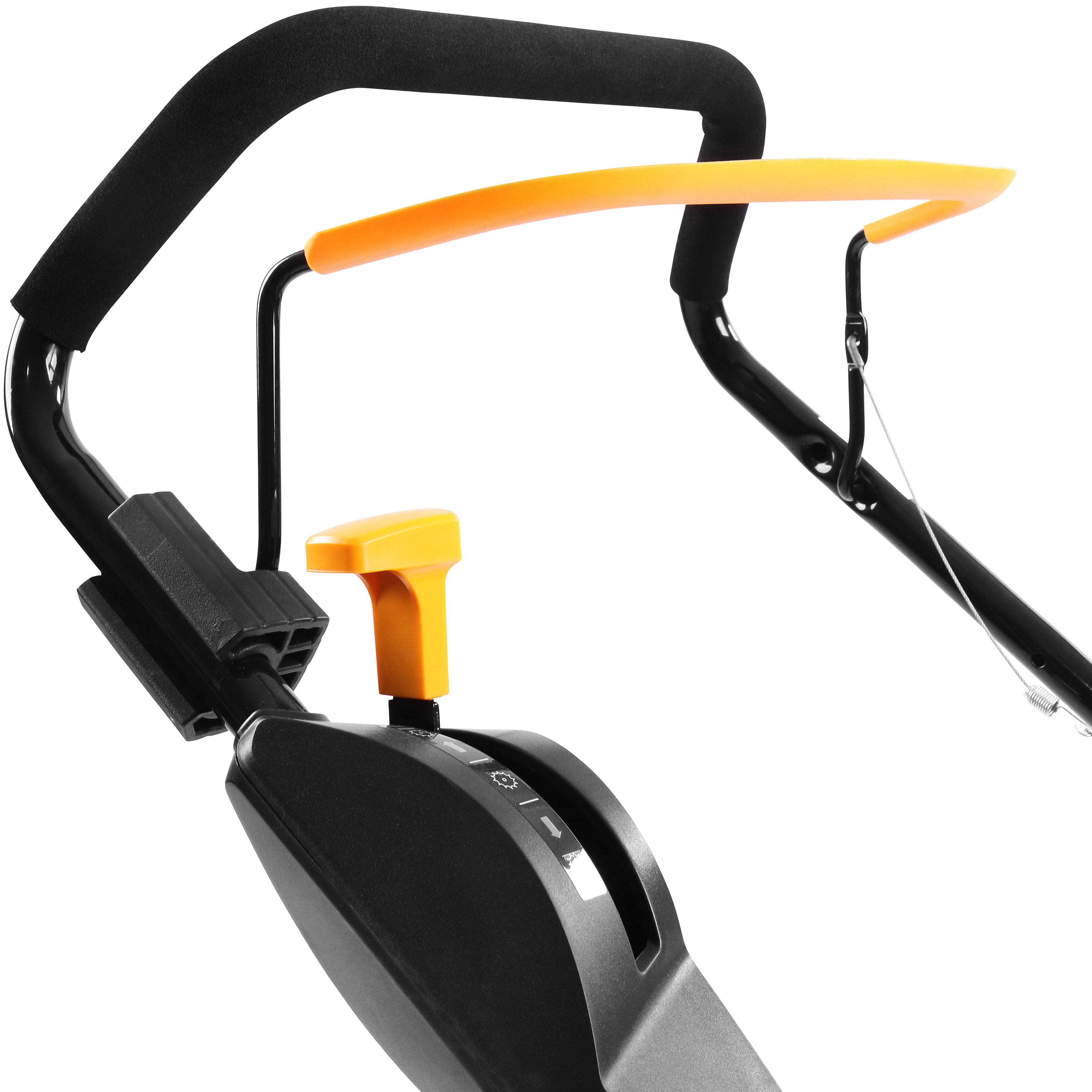

NOTE: The height adjustment only works when the clutch lever is pushed to the lower position.
Yellow ARROW DOWN.
Specifications
Starter
: Recoil
Cylinder
: 1
Forward gears
: 1

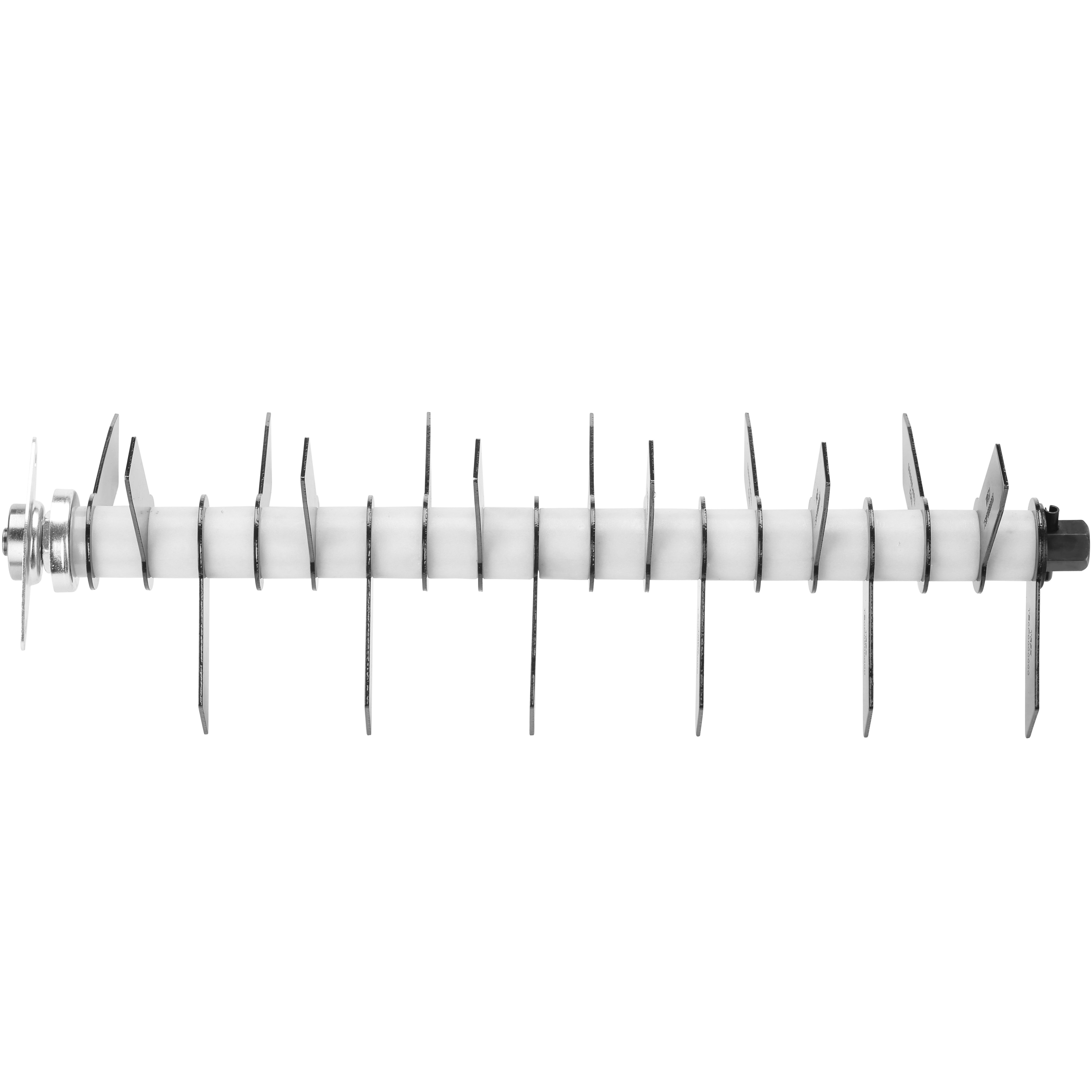

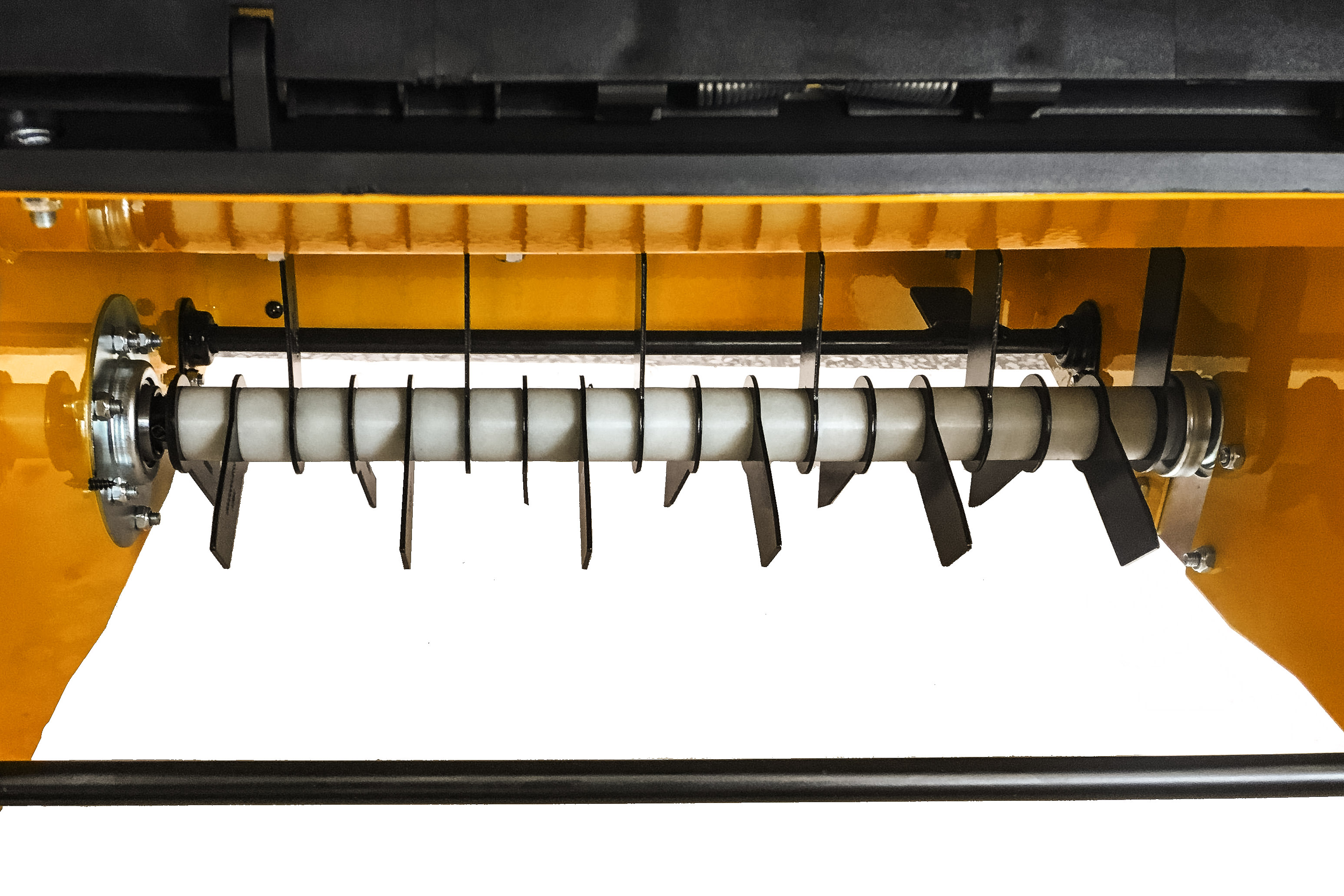

Number of knives
: 18 pce.
Shield material
: Steel
Weight
: 37,5 kg
Box width
: 67 cm
Box length
: 64 cm
Box height
: 57 cm
Engine type
: 4 stroke
Engine model
: TG725X
Collecting box
: 45 litre
Height ajustment
: Central
Working width
: 40 cm
CC
: 212 cc
Power
: 4,0 kW v. 3600 rev./min.
Wheel size front
: 8''
Wheel size rear
: 8''
Engine oil
: 0,6 litre
Tank capacity
: 3,6 litre
Handle bar
: Adjustable
Rear discharge
: Yes
Oil
: SAE 30
Working depth
: -3 til -15 mm
Engine
: Texas
Level of vibration
: 3,56
LWA guaranteed
: 98
Manual
Spare part drawing
NOTE: The height adjustment only works when the clutch lever is pushed to the lower position.
Yellow ARROW DOWN.
| Starter | : Recoil |
| Cylinder | : 1 |
| Forward gears | : 1 |
| Number of knives | : 18 pce. |
| Shield material | : Steel |
| Weight | : 37,5 kg |
| Box width | : 67 cm |
| Box length | : 64 cm |
| Box height | : 57 cm |
| Engine type | : 4 stroke |
| Engine model | : TG725X |
| Collecting box | : 45 litre |
| Height ajustment | : Central |
| Working width | : 40 cm |
| CC | : 212 cc |
| Power | : 4,0 kW v. 3600 rev./min. |
| Wheel size front | : 8'' |
| Wheel size rear | : 8'' |
| Engine oil | : 0,6 litre |
| Tank capacity | : 3,6 litre |
| Handle bar | : Adjustable |
| Rear discharge | : Yes |
| Oil | : SAE 30 |
| Working depth | : -3 til -15 mm |
| Engine | : Texas |
| Level of vibration | : 3,56 |
| LWA guaranteed | : 98 |
