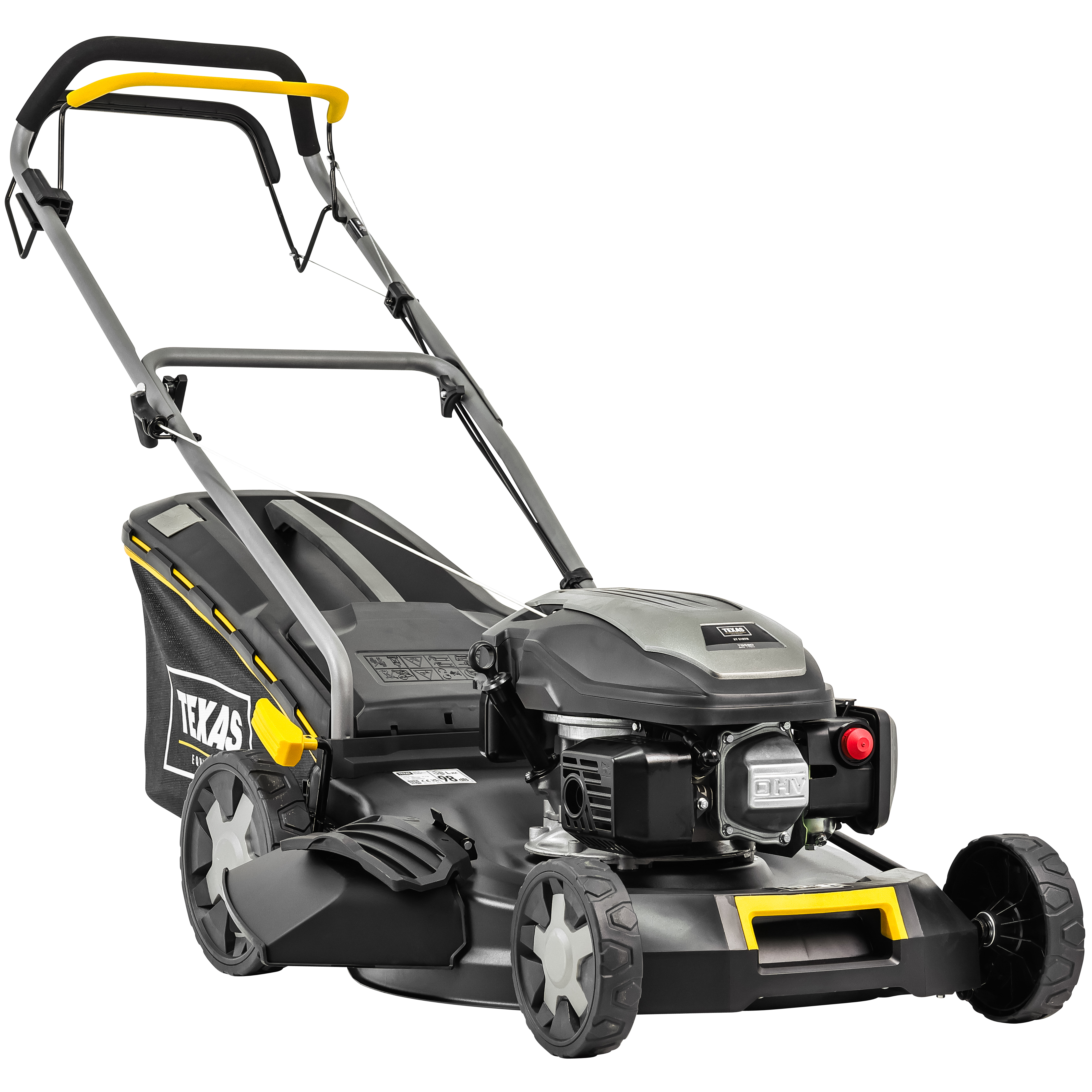

XT 510TR
Specifications
| Power | : 2,9 kW |
| Starter | : Recoil |
| Airfilter | : Foam |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Cutting height | : 28-70 mm |
| Mulching | : Yes |
| Number of high adjustments | : 7 positions |
| Dispatch tupe | : Yes |
| Number of knives | : 1 pce. |
| Bearings | : Ball bearing |
| Shield material | : Steel |
| Weight | : 27 kg |
| Box width | : 82 cm |
| Box length | : 57 cm |
| Box height | : 49 cm |
| Engine type | : 4 stroke |
| Engine model | : TG580 |
| Pull | : Yes |
| Collecting box | : 60 litre |
| Height ajustment | : Central |
| Knife | : Metal |
| CC | : 170 cc |
| Power | : 2800 rev./min. |
| Wheel size front | : 7'' |
| Wheel size rear | : 9'' |
| Engine oil | : 0,5 litre |
| Tank capacity | : 1 litre |
| Handle bar | : Firm |
| Rear discharge | : Yes |
| Noise level | : 98 dB |
| Oil | : SAE 30 |
| Cutting width | : 51 cm |
| Engine | : Texas |
| Level of vibration | : 4,33 |
| Speed forward max | : 3,6 km/hr |
| Rear wheel drive | : Yes |
Manual
Spare part drawing
XT 510TR
Dimensioner
51cm
Art. number: 90066595
EAN: 5714829069258
