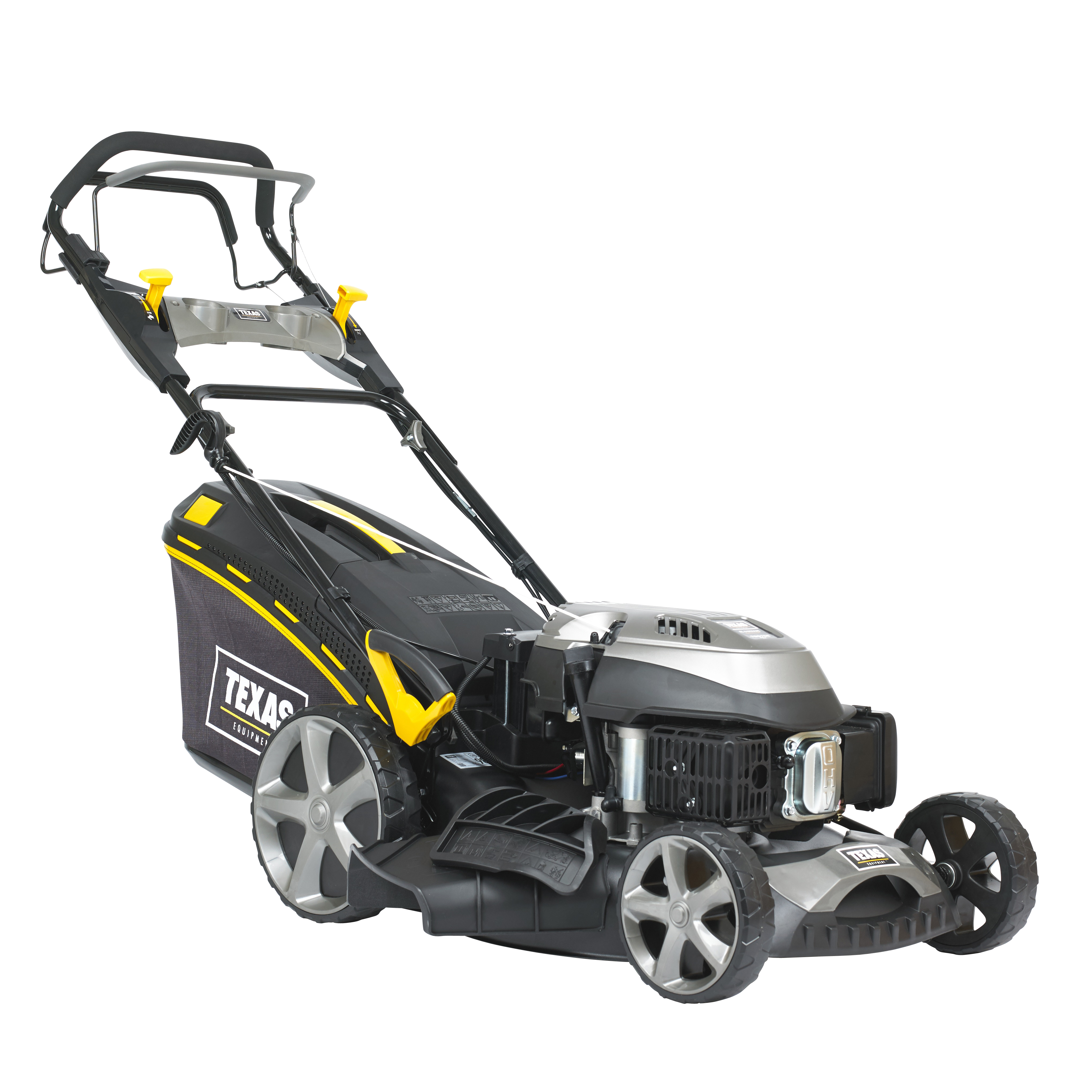

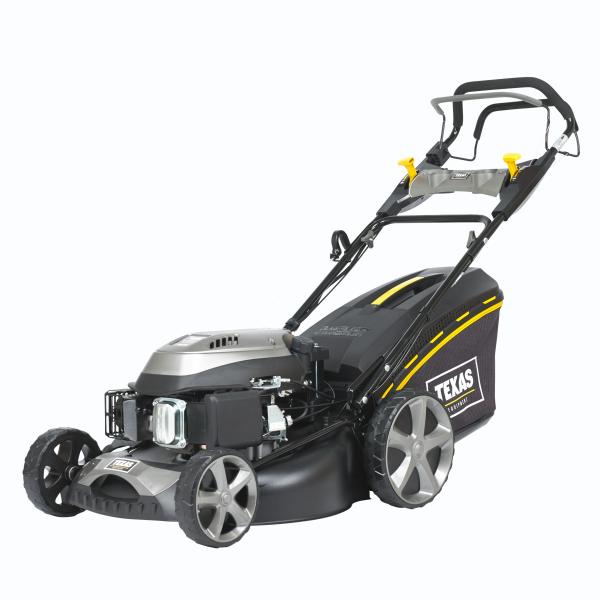

RL 515TR/WE
Specifications
| Starter | : Electric/recoil start |
| Airfilter | : Paper with foam filter |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Cutting height | : 28-75 mm |
| Mulching | : Yes |
| Number of high adjustments | : 6 positions |
| Dispatch tupe | : Yes |
| Number of knives | : 1 pce. |
| Gas adjustment | : Yes |
| Shield material | : Steel |
| Weight | : 42,5 kg |
| Box width | : 83 cm |
| Box length | : 57 cm |
| Box height | : 49 cm |
| Engine type | : 4 stroke |
| Engine model | : TG670E |
| Pull | : Yes |
| Collecting box | : 65 litre |
| Height ajustment | : Central |
| Knife | : Metal |
| CC | : 196 cc |
| Power | : 3,6 kW v. 2800 rev./min. |
| Wheel size front | : 8'' |
| Wheel size rear | : 11'' |
| Engine oil | : 0,6 litre |
| Tank capacity | : 1 litre |
| Handle bar | : Adjustable |
| Rear discharge | : Yes |
| Noise level | : 98 dB |
| Oil | : SAE 30 |
| Cutting width | : 51 cm |
| Engine | : Texas |
| Speed forward max | : 3,6 km/hr |
| Rear wheel drive | : Yes |
Manual
Spare part drawing
RL 515TR/WE
Dimensioner
51cm
Art. number: 90066585
EAN: 5714829005775
Video
Note: Video can be seen over the model.
Specifications
| Starter | : Electric/recoil start |
| Airfilter | : Paper with foam filter |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Cutting height | : 28-75 mm |
| Mulching | : Yes |
| Number of high adjustments | : 6 positions |
| Dispatch tupe | : Yes |
| Number of knives | : 1 pce. |
| Gas adjustment | : Yes |
| Shield material | : Steel |
| Weight | : 42,5 kg |
| Box width | : 83 cm |
| Box length | : 57 cm |
| Box height | : 49 cm |
| Engine type | : 4 stroke |
| Engine model | : TG670E |
| Pull | : Yes |
| Collecting box | : 65 litre |
| Height ajustment | : Central |
| Knife | : Metal |
| CC | : 196 cc |
| Power | : 3,6 kW v. 2800 rev./min. |
| Wheel size front | : 8'' |
| Wheel size rear | : 11'' |
| Engine oil | : 0,6 litre |
| Tank capacity | : 1 litre |
| Handle bar | : Adjustable |
| Rear discharge | : Yes |
| Noise level | : 98 dB |
| Oil | : SAE 30 |
| Cutting width | : 51 cm |
| Engine | : Texas |
| Speed forward max | : 3,6 km/hr |
| Rear wheel drive | : Yes |
Manual
Spare part drawing
